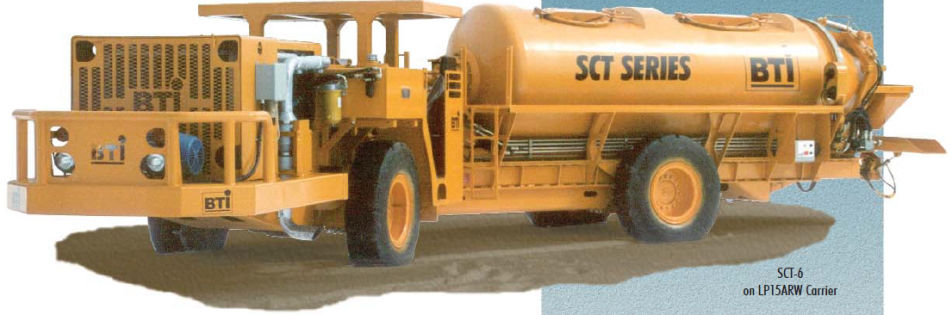

BTI's SCT Series of Shotcrete Transport vehicle is a heavy duty, low profile vehicle specifically designed.
- Bi-directional Drum Rotation
The mixer is driven hydrostatically over a planet gear. The necessary driving power is achieved by a variable axle piston pump enabling a continuously adjustable rpm regulation between 0 rpm to 14 rpm, in both turning directions. The bi-directional rotation of the remix dru allows variable mixing or discharge rate proportional to rotation speed. The drum speed is controlled by two proportional joysticks, one at the discharge end of the drum, the other at the operator’s position on the vehicle.
- Internal Drum Flutes
provide remixing and material discharge without tilting the drum. This allows low profile operation and discharge, and allows the drum to be self-cleaning, eliminating the requirement to tilt the drum.
- Oval Loading Hatch
front to rear, allowing truck to be jockeyed for optimum loading.
- High Load Capacity Bearings and Rollers
The large bearings of the gearbox and the two rollers mounted at the discharge end of the drum form a three point support system that allows the vehicle frame to flex without transmitting the flexing to the body of the drum. The discharge door is opened externally by means of hydraulic control levers operating the external cylinder. The chute is hydraulically powered for both tilt and swing movements. The discharge door seal is fabricated from hardwearing polyurethane material.
